รายละเอียดสินค้า:
|
| ประเภทไฟเบอร์แอ็พพลิเคชัน: | MM มาตรฐาน | คืนค่าการสูญเสีย: | 0~40 เดซิเบล |
|---|---|---|---|
| ช่วงความยาวคลื่น: | 850 นาโนเมตร | ความแม่นยำของตัวลดทอนสัญญาณ: | ≤ ± 0.2 เดซิเบล |
| การทำซ้ำได้: | ≤±0.05 เดซิเบล | ความเร็วในการเปลี่ยนการลดทอน: | 0.1 ~ 35 เดซิเบล/วินาที |
| คืนสูญเสีย: | > 30 เดซิเบล | ||
| เน้น: | 0-60dB variable optical attenuator,accurate signal attenuation optical attenuator,optical attenuator with 0-60dB return loss |
||

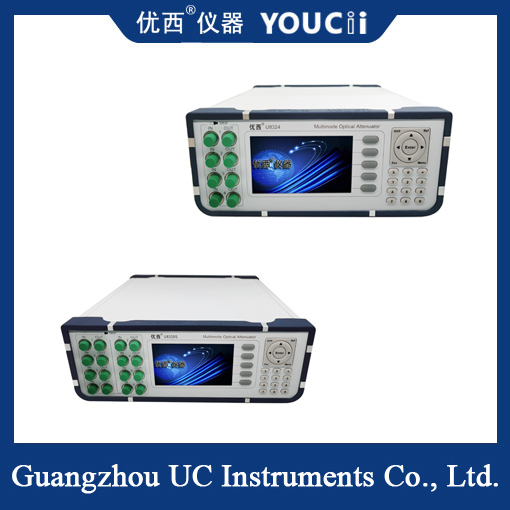

The U8324 programmable optical attenuator is a multi-functional and reliable device designed to provide precise control over signal attenuation in optical communication systems. With its advanced features and functions, this attenuator is an important tool for ensuring the best performance and signal quality in various applications.
The U8324 program-controlled optical attenuator is equipped with communication interfaces including USB and RS232 ports, providing convenient connection options and seamless integration into existing systems. This multi-functional interface enables easy configuration and control, allowing users to precisely and efficiently adjust the attenuation level.
In terms of repeatability, the variable optical attenuator offers outstanding performance with a rated value of ±0.05 dB. This high level of repeatability ensures consistent and reliable signal attenuation, making it an ideal choice for applications with demanding precision requirements.
Within the entire attenuation range of 0 to 40 dB, the attenuator accuracy is ≤±0.2 dB (typp.) Programmable optical attenuators offer unparalleled precision and reliability. This level of precision ensures that signal attenuation is controlled with maximum accuracy, thereby achieving the best signal quality and performance.
| Model # | U8324 | ||
| Attenuator Range | 0~40 dB | ||
| Wavelength Range | 850 nm | ||
| Insertion Loss | ≤ 1.5 dB | ||
| Fiber type | MMF 50/62.5 self-adaptation | ||
| Connector Type | FC/PC Connector | ||
| Attenuator Accuracy | ≤ ± 0.2 dB | ||
| Repeatability | ≤±0.05 dB | ||
| Attenuation Transition Speed | 0.1 ~ 35 dB/s | ||
| Polarization Depend Loss | ≤0.25 dB (0 ~ 40 dB). | ||
| Return Loss | ＞ 30 dB | ||
| Recalibration Period | 2 years | ||
| Operation Temperature | 0～ +40℃ | ||
| Storage Temperature | -30～+80℃ | ||
| Power | 100~240 V | ||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | ||
| Weight | 2.0~5.0 kg | ||
In conclusion, the programmable optical attenuator is a cutting-edge device that can precisely control signal attenuation, featuring outstanding repeatability and accuracy, compatibility with standard MM optical fibers, and excellent return loss capability. Whether used in telecommunications, data centers or research applications, this attenuator can provide reliable performance and the best signal quality, making it an important tool for any optical communication system.
