รายละเอียดสินค้า:
|
| ประเภทตัวเชื่อมต่อ: | UPC/APC | อินเทอร์เฟซข้อมูล: | ยูเอสบี/RS232/แลน |
|---|---|---|---|
| ช่วงการวัด: | +5 ถึง -75 เดซิเบลม | การสอบเทียบ: | โรงงาน/สนาม |
| แหล่งจ่ายไฟ: | แอดป์เตอร์ AC | คืนสูญเสีย: | > 40 เดซิเบล |
| อุณหภูมิการทำงาน: | 0 ～ +40℃ | ||
| เน้น: | optical power meter with USB interface,field calibration optical power meter,compact 200x100x50mm optical power meter |
||
An optical power meter is a multi-functional and reliable tool for precise power measurement in various optical systems. This power meter features a wide measurement range of +5 to -75 dBm, making it suitable for various applications and ensuring accurate readings even in harsh environments.

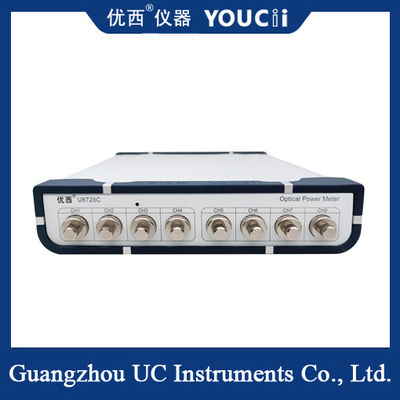

Equipped with convenient USB/RS232/LAN data interfaces, the optical power meter can be easily connected to external devices for data transmission and analysis. This feature enhances productivity and efficiency, making it an ideal choice for professionals in this field.
The optical power meter measures 235 mm W, 55mm H and 320 mm D. It is compact and portable, making it easy to carry and use in different locations. Its ergonomic design and user-friendly interface make it a practical tool for both on-site and laboratory use, providing convenience without compromising performance.
U8724/8 technical specification:
| Model # | U8724/8A | U8724/8B | U8724/8C |
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm |
1510~1625 nm Continuous calibration |
|
| Power Range | +10 ~ -65dBm | +25~-55dBm | +5~-75dBm |
| Sampling period | 100us (10KHz) | 10 us (100KHz) | |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty (accuracy) | ＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm) | ||
| Return Loss | ＞40 dB | ||
| Communication Interface | RS232, USB,Control by PC | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235 mm W, 55mm H, 320 mm D | ||
| Weight | 3.0 kg | ||
In terms of optical power measurement, the U8728C optical power meter is an essential tool suitable for various application scenarios and situations. With its precise measurement and reliable performance, this optical power meter is an ideal choice for a wide range of industries and Settings.
One of the main features of the U8728C optical power meter is its ability to measure power levels over a wide wavelength range. This makes its application in fields such as telecommunications, optical fiber networks, research and development universal and adaptable. Whether you need to measure power in the visible spectrum or at greater distances, this optical power meter can handle it precisely and consistently.

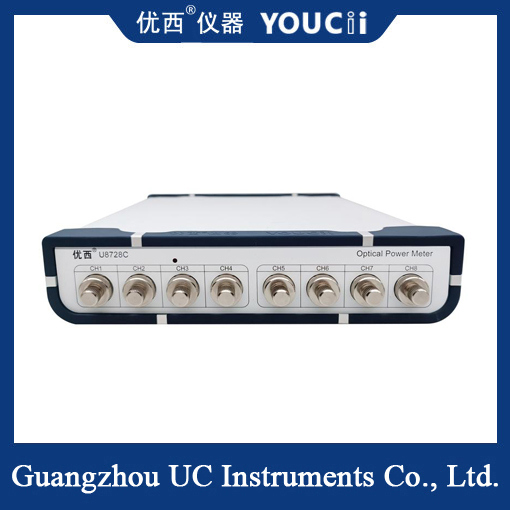

The U8728C optical power meter adopts an 8-channel design, allowing for flexible simultaneous or individual measurement of power levels. This function is particularly useful when it is necessary to monitor or compare multiple light sources.
