รายละเอียดสินค้า:
|
| Model: | U9210E | Data rate: | 622M up to 15Gbps |
|---|---|---|---|
| Material: | Metal | Data output jitter (RMS): | 1.5 (10.3125G down)ps |
| Place of origin: | China | Rise and fall time (20% to 80%): | 18~23ps |
| เน้น: | Full-rate Bit Error Rate Meter,12 Port Channels Error Rate Meter |
||

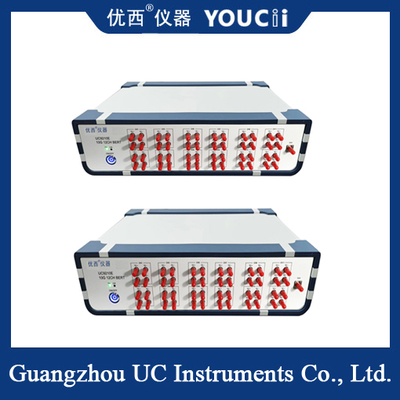

10G Full-rate Bit Error Rate Meter With 12 Electrical Port Channels
The 10G 12-channel full-rate bit error rate tester is a high-performance bit error rate testing device that supports 12 independent channels and has a rate coverage of 622M to 15Gbps (some models support custom expansion to higher rates).
Core function
Multi-channel independent testing
Wide rate range and custom rates
Support for multiple code types
The optical/electrical interface can be flexibly configured
| No. |
parameter |
minimum |
typical |
maximum |
unit |
| 1 |
Data rate |
0.622 | 0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7,14.025,15 | 15 | Gbps |
| 2 |
Code type |
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 3 |
Rise and fall time (20% to 80%) |
18 | 23 | ps | |
| 4 |
Pattern reversal |
Supports signal reversal at the receiving end |
|||
| 5 |
Signal output amplitude (single-ended) |
200 | 800 | 1000 | mV |
| 6 |
Data output jitter (RMS) |
1.5 (10.3125G down) |
ps | ||
| 7 |
Data input/output interface |
Differential, AC coupling, 50 ohm impedance, SMA |
|||
| 8 |
Clock output |
100 | 156.25 | 156.25 | MHz |
| 9 |
Data signal input sensitivity (single-ended) |
0.1 | Vpp | ||
| 10 |
Data output eye graph intersections |
50 | 52 | 54 | % |
| 11 |
Operating temperature |
10 | 25 | 50 | °C |
Typical application scenarios
Research and development and production of optical modules
High-speed cable (DAC/AOC) testing
Data center interconnection verification
Satellite communication and aerospace
